FuturePath Figure-8

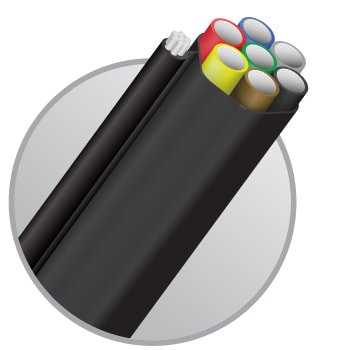

Dura-Line Aerial Self-Support Figure-8 FuturePath® is a configuration of MicroDucts not unlike the OSP HDPE version, but has an additional oversheath and ¼” Extra High Strength Steel flooded strand attached to the MicroDuct bundle. This allows the FuturePath to be placed between poles or to buildings without the need to lash it to a support messenger. The FuturePath can in this manner be installed in one action, avoiding the three-step process of placing the strand alone, pulling out the FuturePath, and then lashing the bundle to the strand. The strong webbing, which attaches the FuturePath to the strand, can be easily separated by common duct slitting tools. The strand is then attached using industry-standard pole line hardware. It is available in 12.7mm OD x 10mm ID MicroDucts in either a 7-way or 4-way version.

FuturePath Figure-8 Specs
